IP CAM setup parameter for Synology Surveillance Station 7.1

#1. 48V HD 720P Megapixel IP Camera PoE Power Over Ethernet IR Bullet IP Camera Outdoor Indoor IR Cut 1080P Lens ONVIF ABS Plastic
US $24.67 ordered from AliExpress.com
http://www.aliexpress.com/item/48V-HD-720P-Megapixel-IP-Camera-PoE-Power-Over-Ethernet-IR-Bullet-IP-Camera-Outdoor-Indoor/32276690674.html



Port: 554
Username: admin
Password:
Model: [User Define]
Video format: H264
Source path: /rtsp://###.###.###.###:554/user=admin_password=tlJwpbo6_channel=1_stream=0.sdp?real_stream (1280x720)
(NOTE: Only single stream, not able to add the IP camera while other stream was added!!!)

#2. H.264 720P Mini Dome Fisheye IP Camera With POE 1.0MP Waterproof 360Degree Panoramic IR-cut Support Mobile View Metal Housing
US $49.00 ordered from AliExpress.com
http://www.aliexpress.com/item/P2P-Cloud-720P-1MP-Panoramic-Dome-IP-180-360-Degrees-Outdoor-Fisheye-Camera-With-POE-Onvif/32501712593.html


Brand: ONVIF
Model: [User Define] IPC-model [Generic_ONVIF]
Port: 554
Source path: /rtsp://###.###.###.###:554/user=admin_password=tlJwpbo6_channel=1_stream=0.sdp?real_stream (1280x720)
Username: admin
Password:
Video format: H.264
Audio format: G711

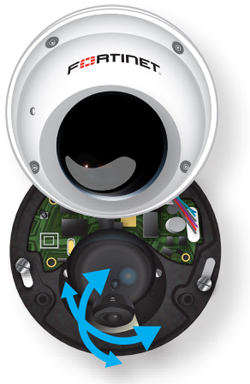

#3. FortiCAM 20A

Port: 554
Source path: rtsp://###.###.###.###/ONVIF/channel3
Username: admin
Video format: MPEG4

#4. FortiCAM OB20

RTSP port: 554
Source path: /rtsp://###.###.###.###:554/ONVIF/channel3
Brand: [User Define]
Username: blank
Brand: ONVIF
Model: G-version

#5. FortiCam-SD20 (FCM-SD20): 2 mega-pixel speed dome PTZ IP camera, DIDO, 1x 10/100 port, 802.3at PoE, outdoor use, rated IP66. (Con: No night-vision)

Press Reset button for 20 seconds.
https://###.###.###.###

Port:80
Brand: Sentry360
Camera model: IS-DM240-V
TV standard: NTSC
Mount Type: Ceiling mount
Username:admin
Password:admin
MJPEG or H264
us.pool.ntp.org = 209.242.224.117

#6. FortiCAM CB20


Port: 554
Brand: [User Define]
Source path: rtsp://###.###.###.###/ONVIF/channel3
Username: admin
Password:
Video format: H.264
